Required for operation (sold separately): Saunum AirIQ Wi-Fi control unit and sauna stones (quantity by model; see below).

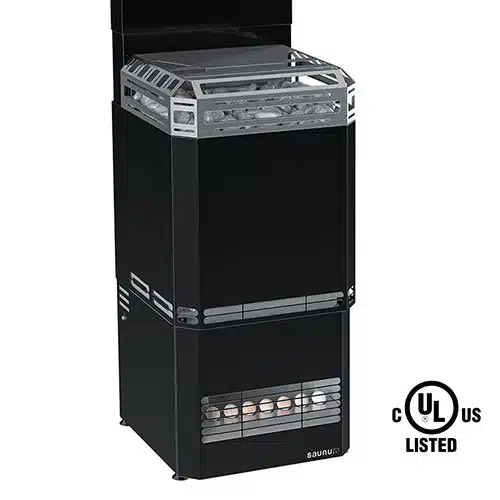

The Saunum Air L brings Saunum’s climate equalizer to larger sauna rooms. The patented air-mixing system draws hot air from near the ceiling, blends it with cooler air near the floor, and redistributes it through the room for a more even temperature from bench to floor; Saunum states the system equalizes room temperature by more than 60%.
It is engineered for water to be thrown on the stones, and its fan system can also help dry the sauna after use. Choose 10, 13, or 15 kW, with a closed stone basket in Nordic Black or an open stone basket in Nordic Black/Anthracite Grey. It installs as a standing wall mount.
Operation requires the Saunum AirIQ Wi-Fi control (sold separately). Himalayan salt spheres sit in the airflow as part of the Saunum design. UL listed.
Features
- Patented Saunum air-mixing system for more even temperature from ceiling to floor
- 10, 13, or 15 kW on 240V

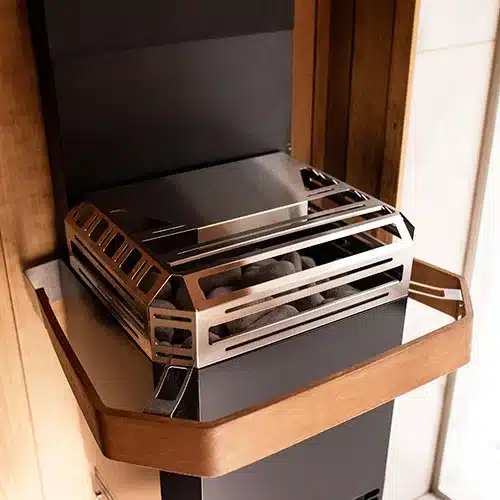

- Closed basket (180 lb stone capacity) or open basket (190 lb); stones sold separately
- Built for water tossing; fan helps dry the sauna after use
- Requires AirIQ Wi-Fi control (sold separately)
- UL listed
Models & Specifications
| Model |
Power |
Electrical |
Amps |
Room size |
Stone capacity |
Dimensions |
| Saunum Air L 10 Closed Basket |
10 kW |
240V 1-phase |
41.25 A |
283–494 cu. ft. |
180 lbs (80 kg) |
W 18.3″ (465mm) x D 18.1″ (460mm) x H 73-95″ (1850-2450mm) |
| Saunum Air L 10 Open Basket |
10 kW |
240V 1-phase |
41.25 A |
283–494 cu. ft. |
190 lbs (85 kg) |
W 18.3″ (465mm) x D 18.1″ (460mm) x H 73-95″ (1850-2450mm) |
| Saunum Air L 13 Closed Basket |
13 kW |
240V 1-phase |
53.75 A |
424–565 cu. ft. |
180 lbs (80 kg) |
W 18.3″ (465mm) x D 18.1″ (460mm) x H 73-95″ (1850-2450mm) |
| Saunum Air L 13 Open Basket |
13 kW |
240V 1-phase |
53.75 A |
424–565 cu. ft. |
190 lbs (85 kg) |
W 18.3″ (465mm) x D 18.1″ (460mm) x H 73-95″ (1850-2450mm) |
| Saunum Air L 15 Closed Basket |
15 kW |
240V 1-phase |
62.5 A |
530–812 cu. ft. |
180 lbs (80 kg) |
W 18.3″ (465mm) x D 18.1″ (460mm) x H 73-95″ (1850-2450mm) |
| Saunum Air L 15 Open Basket |
15 kW |
240V 1-phase |
62.5 A |
530–812 cu. ft. |
190 lbs (85 kg) |
W 18.3″ (465mm) x D 18.1″ (460mm) x H 73-95″ (1850-2450mm) |
Required for Operation (Sold Separately)
- Saunum Air L 10 Closed Basket: Saunum AirIQ Wi-Fi control unit; sauna stones, 180 lbs (80 kg) capacity (6 boxes).
- Saunum Air L 10 Open Basket: Saunum AirIQ Wi-Fi control unit; sauna stones, 190 lbs (85 kg) capacity (6 boxes).
- Saunum Air L 13 Closed Basket: Saunum AirIQ Wi-Fi control unit; sauna stones, 180 lbs (80 kg) capacity (6 boxes).
- Saunum Air L 13 Open Basket: Saunum AirIQ Wi-Fi control unit; sauna stones, 190 lbs (85 kg) capacity (6 boxes).
- Saunum Air L 15 Closed Basket: Saunum AirIQ Wi-Fi control unit; sauna stones, 180 lbs (80 kg) capacity (6 boxes).
- Saunum Air L 15 Open Basket: Saunum AirIQ Wi-Fi control unit; sauna stones, 190 lbs (85 kg) capacity (6 boxes).
What’s Included
- Saunum Air L 10 Sauna Heater
- Hot Air Intake Cap
- Hot Air Intake
- Stone Basket
- Air Outake Grille
- Cool Air Intake Valve
- Protective Grill
- Himalayan Salt Spheres (7)
- Himalayan Salt Tray
- Temperature Sensor
- Installation and Operation Manual
- 2-Year Warranty (Consumers Use)
Warranty
2-year limited warranty for use in a private sauna; 1 year for use in a public sauna. Heating elements and salt are excluded. Claims require a completed installation report and connection by a qualified electrician.
Documents
Questions about sizing, electrical requirements, or installation? Talk with a Royal Spa product specialist.
