Required for operation (sold separately): Sauna stones (quantity by model). Non-B models also need the IKI UKU Wi-Fi control; B models have controls built in. See the model details below.

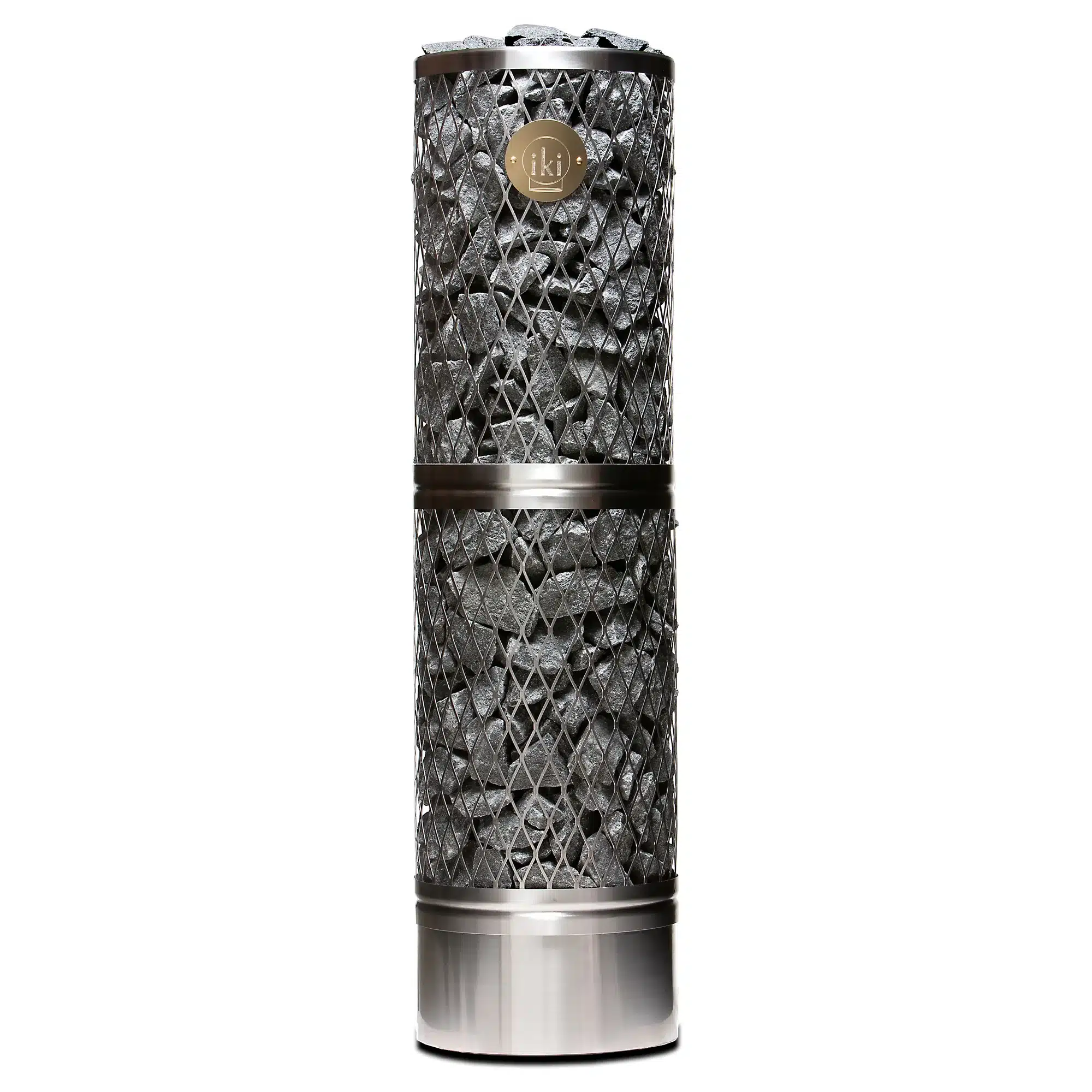

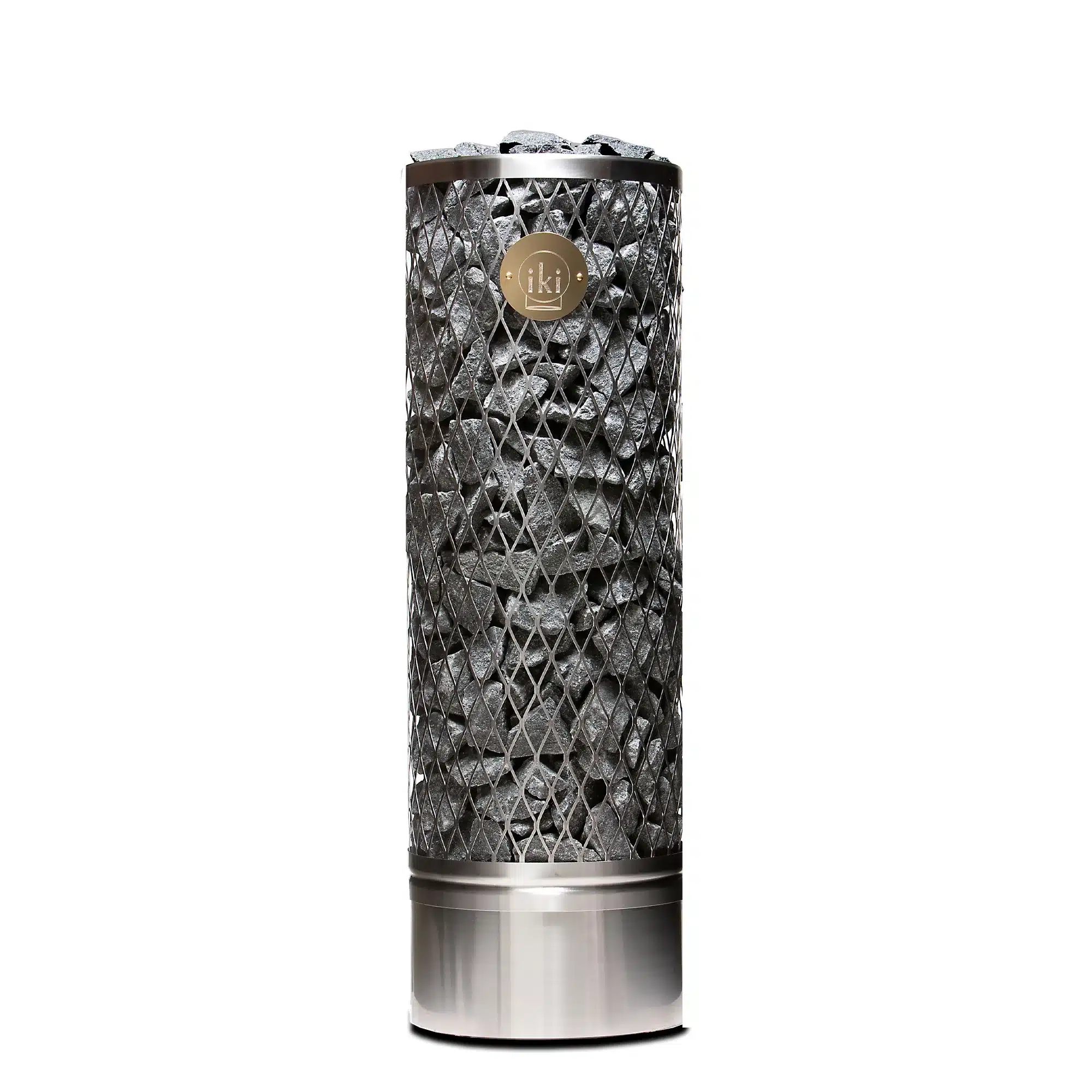

The IKI Pillar is a floor-standing electric sauna heater with a stainless-steel stone frame: 264 lbs (120 kg) of stones on the 6.6 kW model and 286 lbs (130 kg) on the 9 kW.
Each size comes two ways: with controls built into the heater (B models), or for use with the IKI UKU Wi-Fi control (sold separately). All models run on 240V single-phase power, are hardwired, reach a maximum temperature setting of 194°F (90°C), and are UL listed.
Features
- Floor-standing installation
- 6.6 kW (176–360 cu. ft.) or 9 kW (282–565 cu. ft.)
- Stone capacity 264 lbs (6.6 kW) or 286 lbs (9 kW); stones sold separately

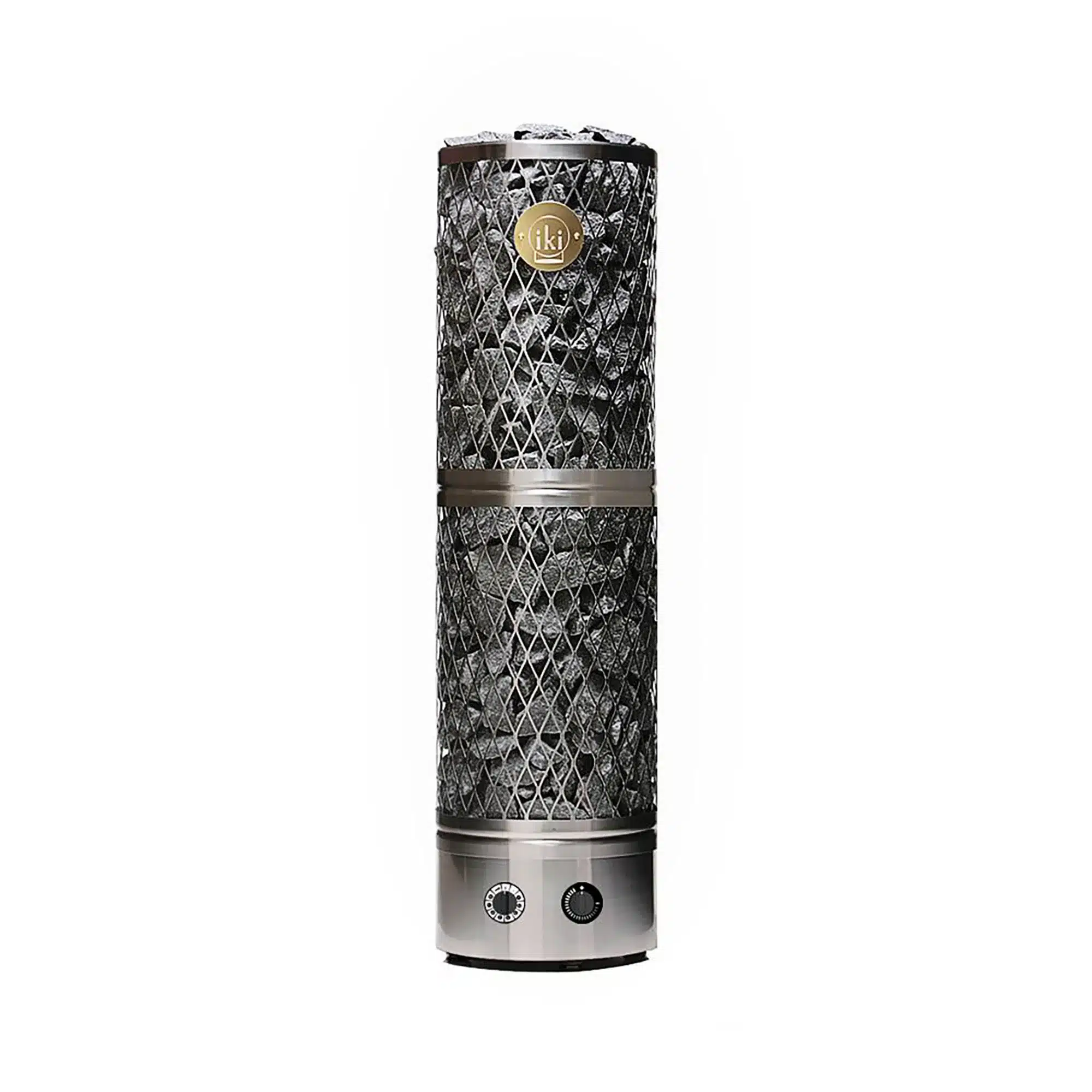

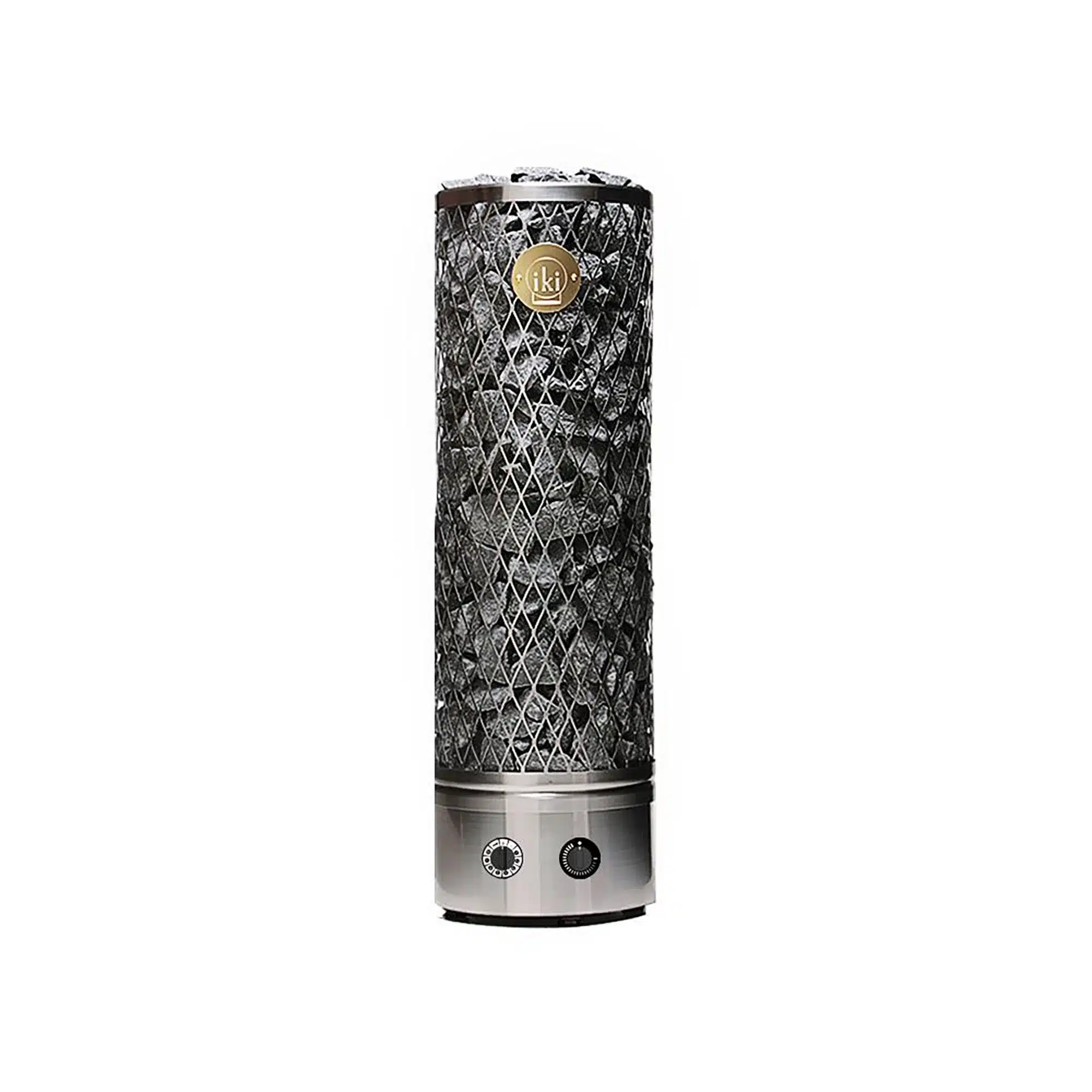

- Built-in controls (B models) or IKI UKU Wi-Fi control (sold separately)
- 240V single-phase, hardwired; max 194°F (90°C)
- Stainless steel; UL listed
Models & Specifications
| Model |
Power |
Electrical |
Amps |
Room size |
Stone capacity |
Dimensions |
| IKI Pillar 6.6 |
6.6 kW |
240V 1-phase |
28.75 A |
176–360 cu. ft. |
264 lbs (120 kg) |
H 39.4″ (100 cm) · Dia./Radius 13.4″ (34 cm) |
| IKI Pillar 6.6B |
6.6 kW |
240V 1-phase |
28.75 A |
176–360 cu. ft. |
264 lbs (120 kg) |
H 39.4″ (100 cm) · Dia./Radius 13.4″ (34 cm) |
| IKI Pillar 9 |
9 kW |
240V 1-phase |
37.5 A |
282–565 cu. ft. |
286 lbs (130 kg) |
H 43.3″ (110 cm) · Dia./Radius 13.4″ (34 cm) |
| IKI Pillar 9B |
9 kW |
240V 1-phase |
37.5 A |
282–565 cu. ft. |
286 lbs (130 kg) |
H 43.3″ (110 cm) · Dia./Radius 13.4″ (34 cm) |
Required for Operation (Sold Separately)
- IKI Pillar 6.6: IKI UKU Wi-Fi control; IKI sauna stones for a 264 lbs (120 kg) capacity — 6 boxes of IKI Stones 44 Split Face or 8 boxes of IKI Stones 33 Round.
- IKI Pillar 6.6B: IKI sauna stones for a 264 lbs (120 kg) capacity — 6 boxes of IKI Stones 44 Split Face or 8 boxes of IKI Stones 33 Round. Controls are built into the heater (no separate control needed).
- IKI Pillar 9: IKI UKU Wi-Fi control; IKI sauna stones for a 286 lbs (130 kg) capacity — 7 boxes of IKI Stones 44 Split Face or 9 boxes of IKI Stones 33 Round.
- IKI Pillar 9B: IKI sauna stones for a 286 lbs (130 kg) capacity — 7 boxes of IKI Stones 44 Split Face or 9 boxes of IKI Stones 33 Round. Controls are built into the heater (no separate control needed).
What’s Included
- Sauna Heater
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 6-Month Limited Warranty (Commercial Use)
Warranty
2-year limited warranty (consumer use) and 6-month limited warranty (commercial use).
Documents
Questions about sizing, electrical requirements, or installation? Talk with a Royal Spa product specialist.
